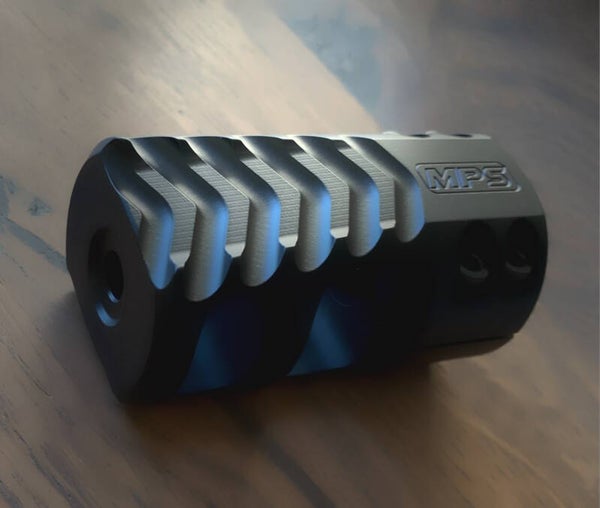

Spider 2-Port Muzzle Brake 38mm

The Spider was designed spesifically for airguns with larger dia shrouds e.g. FX Panthera, DRS etc with 34mm shrouds.

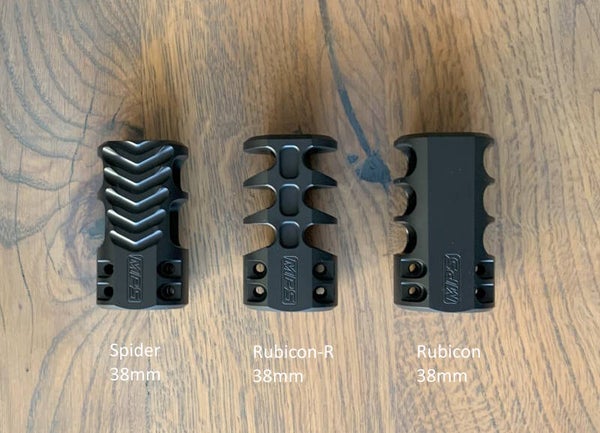

It features a more 3D design and the Top and Bottom sides tapers to the front to create an interesting look. See fotos of a comparison between some of the 38mm dia. brakes I offer.

The brake is fully indexable on your rifle via the use of a unique threaded insert design that ensures good bore alignment via a simple clamping mechanism.

Symmetrical air/gas dispersion via 2 side ports. The larger first ports makes this brake very effecient.

1/2" UNF thread (can also clamp directly on 16mm barrels without the threaded insert) If you require something else like clamping on a 15mm barrel or another type of thread please drop me a message.

Length: 68mm

Width: 38mm

Height: 34mm

Weight: 110g

Main body material: 2011 or 6082 T6 aluminium

Fastners: M4x16mm (Let me know if you want Stainless Steel or 12.9 Black Nitrate skrews )

Finish: Cerakote H-Series oven cured ceramic coating

Color: Graphite Black (H-146)

https://www.cerakoteeu.com/shop/cerakote-coatings/h-series-coatings/graphite-black-h-146/

Available colors: Black only*

*Contact me if you need another color, Cerakote offers many different colors as per the hyperlink above.

Video on how to fit this brake to your air rifle : https://youtu.be/jyi0YCd-uOc

NB! This muzzle brake is only for use on air rifles, do not use it on a centerfire rifle!
