Arca Front Bag Plate Set

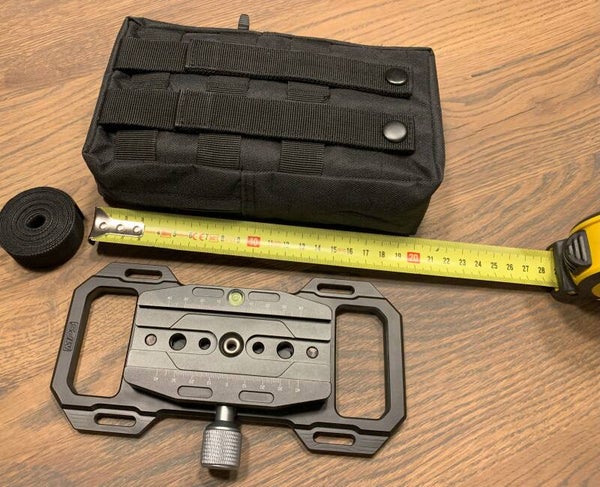

A complete front bag plate set including a bag filled with rubber granules and 2 velcro straps to attach the bag to the plate. To make the plate set a little more affordable I used a good quality off-the-shelf ARCA clamp that attaches to the base plate with two 1/4unc capskrews.
Weight: +- 1250grams complete including filled bag.

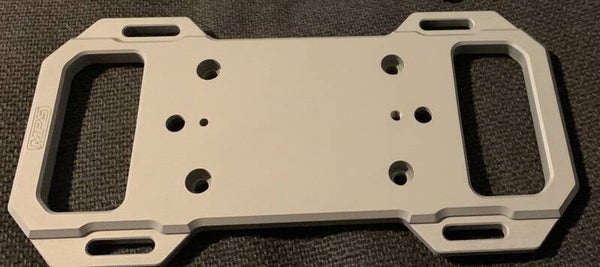

Plate:
Material: 6082 T6 aluminium
Size: 198mm(L) x 98mm(W) x 9.6mm(H) Total heigth with base plate + clamp on top is +- 25mm
Finish (plate): Cerakote H-Series oven cured ceramic coating
Color: Graphite Black (H-146)
The bag is a generic EDC nylon bag of size 200mm(L) x 120mm(W) x 50mm(H) with a zip to make it possible to add or remove granules or replace the content with something of your own preference like beans or a HD foam pad etc.
