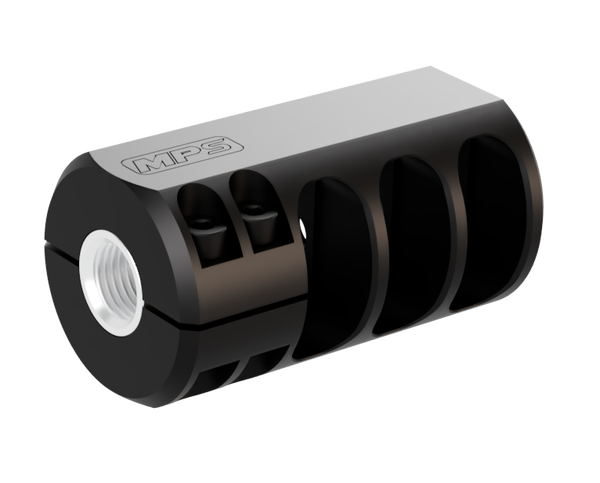

Rubicon 3-port Muzzle Brake 38mm

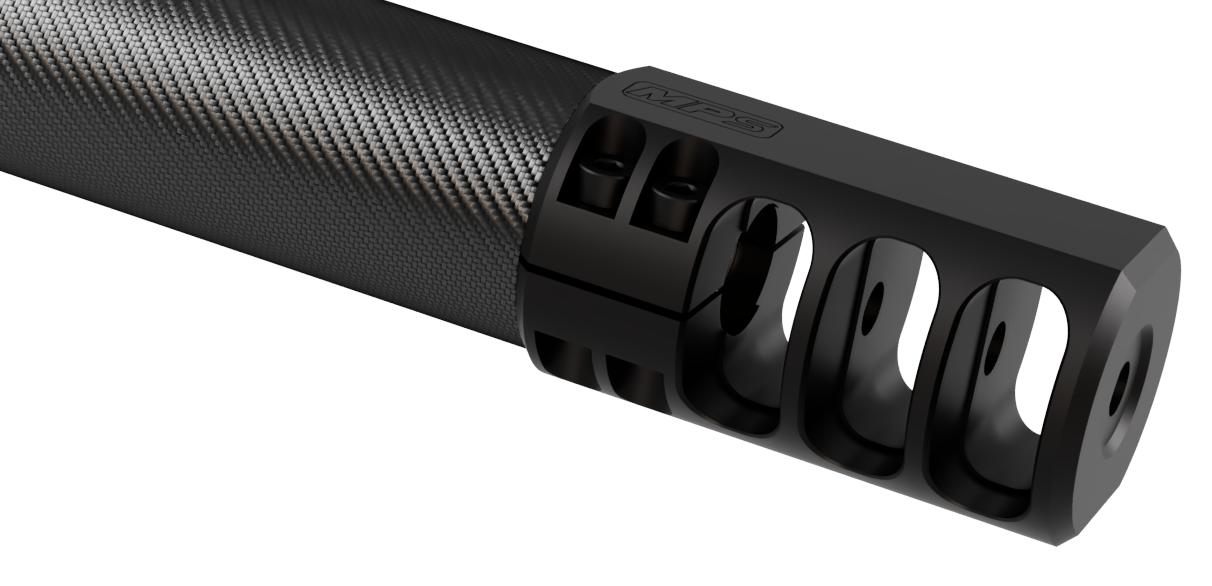

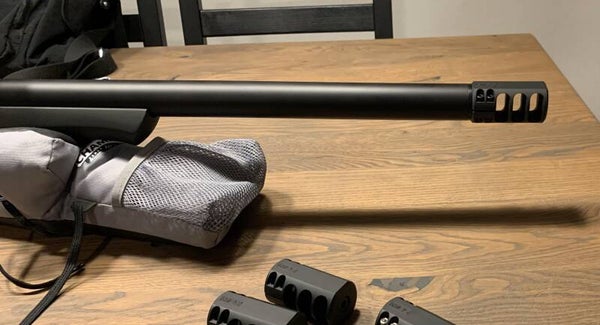

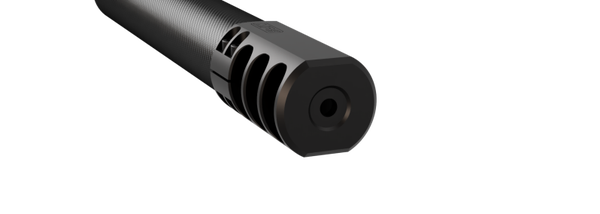

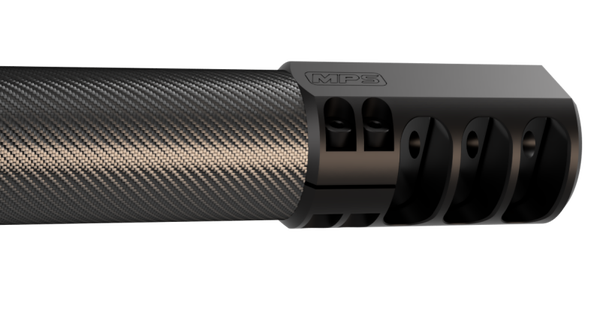

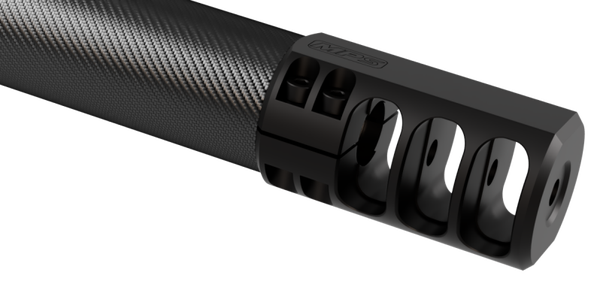

The Rubicon was designed spesifically for airguns with larger dia shrouds e.g. FX Panthera, DRS etc. The photos and drawings here shows what it looks like on a 34mm diameter shroud.

The brake is fully indexable on your rifle via the use of a unique threaded insert design that ensures good bore alignment via a simple clamping mechanism.

Symmetrical air/gas dispersion via 3 side ports.

1/2" UNF thread (can also clamp directly on 16mm barrels without the threaded insert) If you require something else like clamping on a 15mm barrel or another type of thread please drop me a message.

Length: 68mm

Width: 38mm

Height: 34mm

Weight: 111g

Main body material: 2011 or 6082 T6 aluminium

Fastners: M4x16mm (Let me know if you want Stainless Steel or 12.9 Black Nitrate skrews )

Finish: Cerakote H-Series oven cured ceramic coating

Color: Graphite Black (H-146)

https://www.cerakoteeu.com/shop/cerakote-coatings/h-series-coatings/graphite-black-h-146/

Available colors: Black only*

*Contact me if you need another color, Cerakote offers many different colors as per the hyperlink above.

Video on how to fit this brake to your air rifle : https://youtu.be/jyi0YCd-uOc

NB! This muzzle brake is only for use on air rifles, do not use it on a centerfire rifle!
