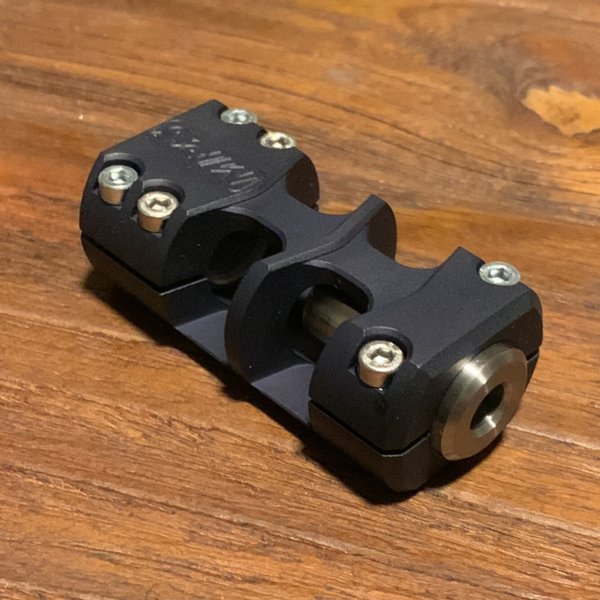

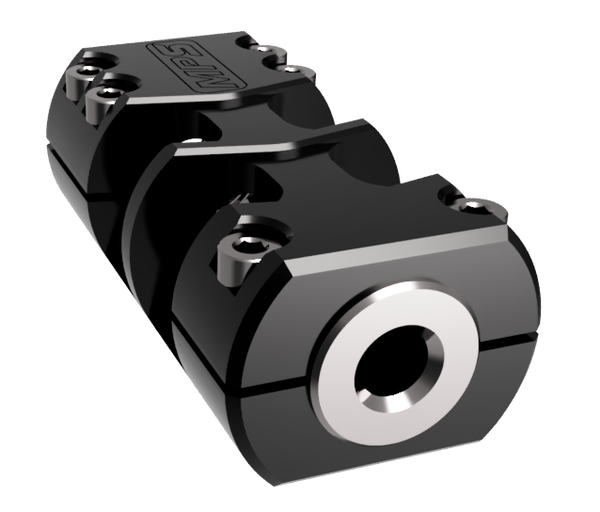

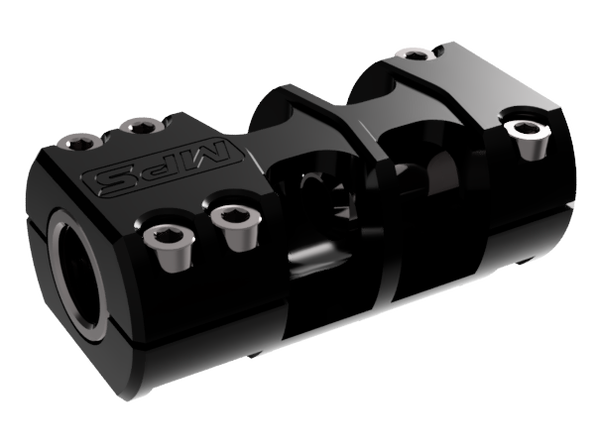

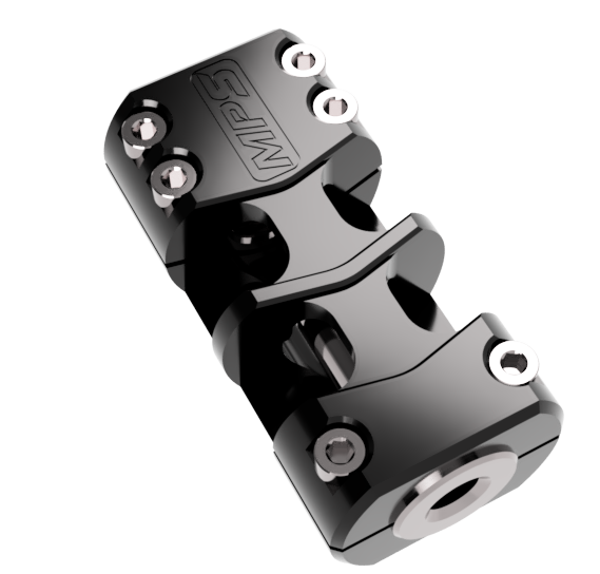

Compact One Muzzle Brake 30mm

The Compact 1 is my smallest brake but still gives excellent performance and is the most versatile brake I offer. Due to the closed bottom section it deflects air sideways and upwards to reduce recoil and muzzle flip.

The Compact is also a great option for tuners and passionate tinkerers. If you have small lathe (or a friend with a lathe) it is simple to make front inserts of different lenghts, cone designs, bore diameter, etc to your personal requirements. The O.D. of the insert is just turned to 16mm or a tad smaller, and the rest is up to your imagination, no threading required because it is clamped in the main brake body.

At this price point I don't believe there is anything remotely comparable on the market that offers the same quality and features. If you don't agree with this please send me a link to that product and I will consider removing this statement.

Asymetrical air/gas dispersion.

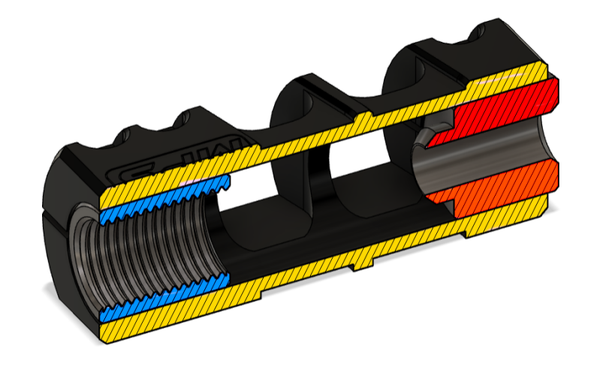

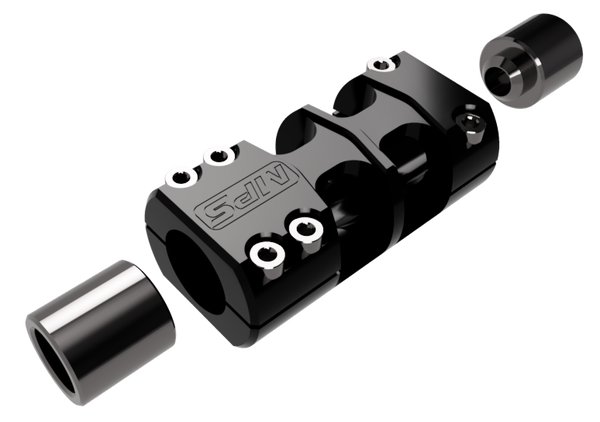

Fully indexable on your barrel via the use of a unique threaded insert design that ensures good bore alignment via a simple clamping mechanism.

1/2" UNF thread (can also clamp directly on 16mm barrels without the threaded insert)

Calibre changes can simply be done on the Compact One by ordering or making a different front insert, .177, .22, .25, .30, they all fit in the same main brake body.

Length: 60mm

Width: 30mm

Height: 22mm

Weight: 70g

*With the silver/grey some discolorization might occur during the aluminium anodizing process causing slightly darker areas on the part.
